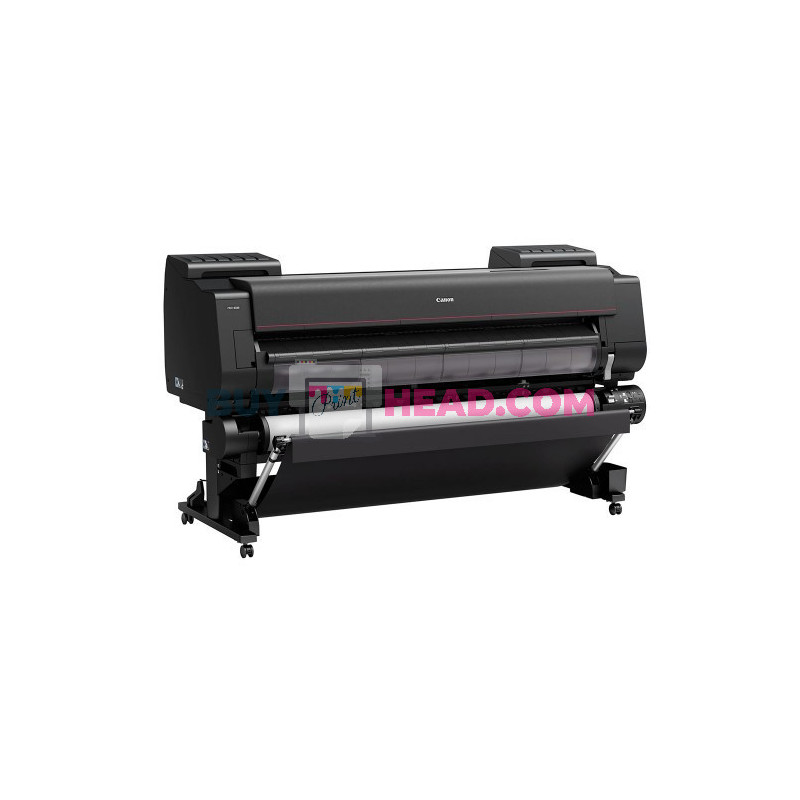

Canon imagePROGRAF PRO-6100 11-Color 60" Large Format Inkjet Printer

Canon imagePROGRAF GP-4000 11-Color 44" Large Format Thermal Inkjet Printer

Functions

Print

Head Configuration

12-Channel Integrated Type

Nozzle Configuration

1,536 Nozzles x 12 Channels, Total: 18,432

Droplet Size

Minimum 4 Picoliters per Color

Maximum Print Resolution

Up to 2400 x 1200 dpi

Ink Information

Type: Pigment Based LUCIA PRO Ink Technology
PFI-1100 (160 ml): PBK, MBK, C, M, Y, PC, PM, GY,
PGY, R, B, + CO
PFI-1300 (330 ml): PBK, MBK, C, M, Y, PC, PM, GY,
PGY, R, B, + CO
PFI-1700 (700 ml): PBK, MBK, C, M, Y, PC, PM, GY,
PGY, R, B, + CO

Media Handling

Front-Loading Automatic Roll Feed: One Roll,
Front Output
Front-Loading Automatic Feed: Front Loading,
Front Output

Media Width

8" - 60" (Cut-Sheet and Roll)

Minimum Print Length

8"

Maximum Print Length

Roll Feed: 59' (18m) (Single Page)

Borderless Printing Widths

No Size Restriction -
0"/14"/17"/24"/36"/42"/44"/46"/48"/56"/60" + Micro
Margin (Roll Media Only)

Media Thickness

0.07 mm - 0.8 mm

Media Core Sizes

2" or 3" Core (with supplied adapter)

Printable Margins

Roll Paper:
Top: 3 mm; Bottom: 3 mm; Side: 3 mm
Borderless:
Top: 0mm; Bottom: 0mm; Sides: 0mm
Cut-Sheet:
Top: 3 mm; Bottom: 20 mm; Side: 3 mm

General Features

60" Wide Printer with Stand, 12 Individual Ink Tanks,
PF-10 Print Head (1) with Non-Firing and
Compensation Function, L-COA PRO Image
Processing Engine, Color Density Sensor for
Calibration

Printer Memory

3 GB (Standard)

Hard Disk Capacity

500 GB

Display

4.3" Color LCD Touch-screen

Acoustic Noise

Operation: approx. 48 dB (A) (Glossy paper, Image,
Print priority: Standard)
Standby: 35 dB (A) or less

Power Supply

AC 100-240 V (50-60 Hz)

Power Consumption

97W or less
2.0 W or less (Wired LAN connected)
0.3 W or Less (Executive Order Compliant)
Powered off: 0.3W or less

Environmental Certifications

ENERGY STAR (Worldwide)

Operational Environment Temperature

59 - 86 Degree F (15 - 30 Degree C)

Interfaces

USB 2.0 High Speed
Ethernet: 10/100/1000 Base-T/TX, WiFi

OS Compatibility

Computer Operating Systems:
32-bit: Windows Vista/7/8.1/10
64-bit: Windows Vista/7/8/8.1/10 Windows Server
2008R2, Windows Server 2012/2012R2
Windows Server 2016, Windows Server 2019
OS X 10.10.5-OS10.11, macOS 10.12-macOS 10.14

Software (Mac/Windows Available)

Professional Print & Layout
Direct Print & Share (PC only)
PRO Series Printer Driver
Accounting Manager (PC Only)
PosterArtist Lite
Easy Photo & Print Editor
Free Layout Plus (With Plug-in for Microsoft Office)
Device Management Console
Media Configuration Tool
Canon PRINT Inkjet/SELPHY
Quick Utility Toolbox

Weight

274 lb / 124.3 kg

Firmware

Printer Languages
Printer Language: SGRaster

Dimensions (H x W x D)

46 x 78.7 x 38.7" (116.8 x 200 x 98.2cm) (with basket open)

Weight

Approx. 368 lb (167kg) (roll holder included, no inks, no print heads)

Print Head

PF-10

Compatibility

Pigment Ink Tank PFI-1100 B, PFI-1100 C, PFI-1100
CO, PFI-1100 GY, PFI-1100 M, PFI-1100 MBK,
PFI-1100 PBK, PFI-1100 PC, PFI-1100 PGY,
PFI-1100 PM, PFI-1100 R, PFI-1100 Y, PFI-1300 B,
PFI-1300 C, PFI-1300 CO, PFI-1300 GY,
PFI-1300 M, PFI-1300 MBK, PFI-1300 PBK, PFI-1300
PC, PFI-1300 PGY, PFI-1300 PM, PFI-1300 R,
PFI-1300 Y, PFI-1700 B, PFI-1700 C, PFI-1700 CO,
PFI-1700 GY, PFI-1700 M, PFI-1700 MBK,
PFI-1700 PBK, PFI-1700 PC, PFI-1700 PGY, PFI-1700
PM, PFI-1700 R, PFI-1700 Y
