KJ4B-QA Kyocera Printhead

100% New Original Kyocera water based printhead - KJ4B-QA

Kyocera KJ4B-QA for CNTOP Homertech textile printer

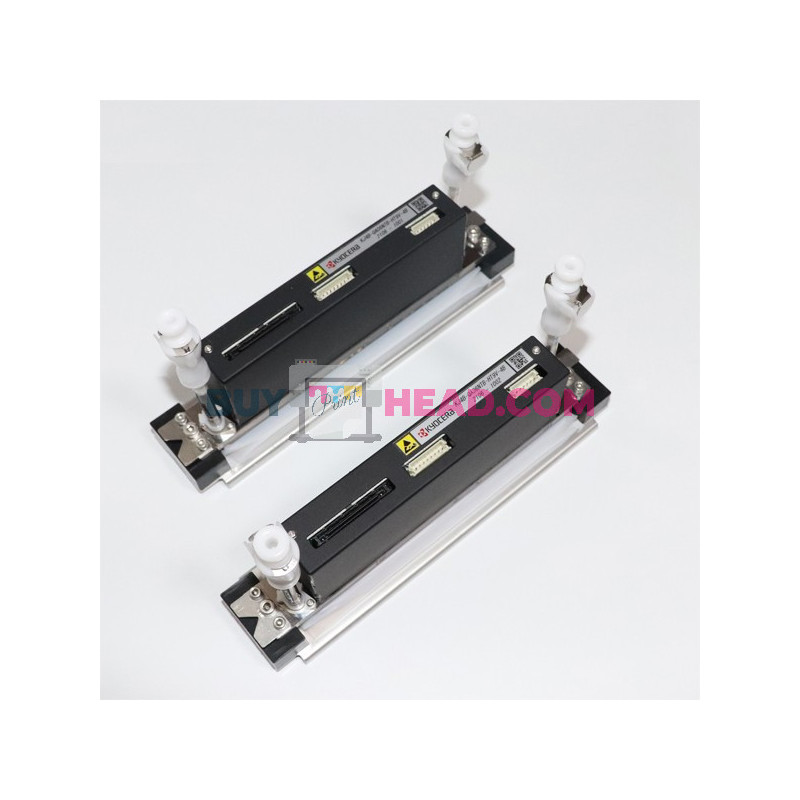

Kyocera Water Printheads KJ4B-QA - 600 dpi - 30kHz - for water based inks

This Kyocera KJ4B-QA is designed is designed for high speed printing of water-based inks. It is a 600 dpi one colour printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.

The Kyocera KJ4B-QA is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply.

Specifications :
    Ink Type:  Aqueous Ink
    Dimensions: 200 × 25 × 59.3mm
    Dry Weight: 420g
    Total Nozzles: 2.656
    Nozzle Pitch: 0.042mm
    Standard Resolution: 600 x 600 dpi
    Print Width: 108.25mm
    Max. Drive Frequency: 30kHz
    Drop Volume: 5, 7, 12 and 18pl
    Max. Sprint Speed: 75m/min
    Optimum Ink viscosity: 5.0 - 6.0 mPa*s

The Kyocera KJ4B-QA is available in 3 different versions:
- standard for all printers other than MS and Reggiani
- MS printers
- Reggiani ReNOIR printers (with cable)
Each version is different and needs to be selected for the appropriate printer brand.

Printer compatibility :

EFI
   Reggiani ReNOIR TOP
   Reggiani Compact 180

MCS Eagle

   MS Italy JP6

Xerox Rialto 900
